SRN2512-2R2M | Bourns Electronics GmbH

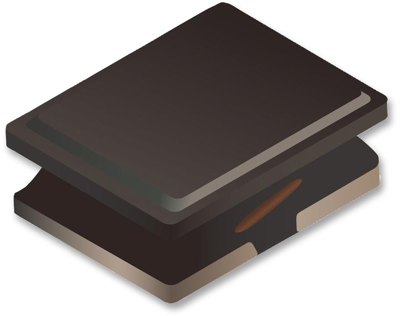

Power choke, SMD, 2.2 µH, SRN2512-2R2M
Order No.: 05D5883
EAN: 4099889000528
MPN:
SRN2512-2R2M
Unit Price (€ / pc.)
0.2166 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN2512-2R2M, Bourns
Features
- Semi-shielded construction
- Ferrite core
- Low profile: 1.2 mm
- Miniature size
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- HDDs, cellphones
- Televisions, LCD displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 2.2 µH | |
| Length | 2.5 mm | |
| Saturation current | 2.7 A | |
| Design | SMD | |
| DC resistance | 102 mΩ | |
| Tolerance | ±20 % | |
| Width | 2 mm | |
| Measuring frequency | 1 MHz | |
| Quality Q | Q 11 | |
| Height | 1.2 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
