SRN1060-330M | Bourns Electronics GmbH

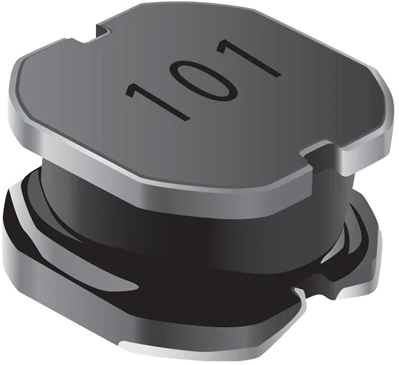

Power choke, SMD, 33 µH, SRN1060-330M
Order No.: 05D5634
EAN: 4099879998200
MPN:
SRN1060-330M
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SRN1060-330M, Bourns
Features
- Semi-shielded construction
- High inductance
- Ferrite core
- RoHS compliant
- Halogen free
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 33 µH | |
| Length | 10 mm | |
| Saturation current | 2.8 A | |
| Design | SMD | |
| DC resistance | 72 mΩ | |
| Tolerance | ±20 % | |
| Width | 9.8 mm | |
| Measuring frequency | 2.52 MHz | |
| Quality Q | Q 16 | |
| Height | 6 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
