SRF4532-510Y | Bourns Electronics GmbH

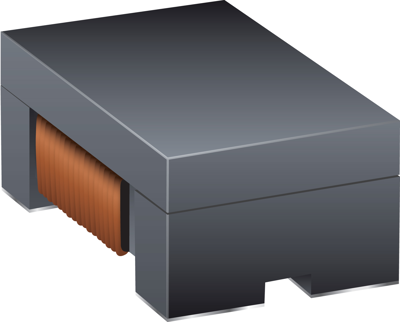

Power choke, SMD 4532, 51 µH, 200 mA, SRF4532-510Y
Unit Price (€ / pc.)
0.7378 € *
Next delivery: 500 pcs. on 2025-10-27
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.5236 €
100 pcs.
0.4522 €
500 pcs.
0.3927 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, SRF4532-510Y, BOURNS
Features
- Bifi lar wound
- High common mode impedance
- Halogen free
- RoHS compliant
Applications
- Data and signal lines
- CANbus
- Telecom devices
- Consumer electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC resistance | 3.5 Ω | |
| DC current | 200 mA | |

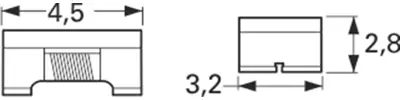

| Design | SMD 4532 | |
| Width | 3.2 mm | |
| Tolerance | -30/+50 % | |
| Version | power choke | |
| Measuring frequency | 100 kHz | |
| Height | 2.8 mm | |
| Length | 4.5 mm | |
| Inductance | 51 µH |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Country of origin | TW |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
