SRE6603-103M | Bourns Electronics GmbH
Power choke, SMD, 10 mH, SRE6603-103M
Order No.: 05D5376
EAN: 4099879995797
MPN:
SRE6603-103M
Unit Price (€ / pc.)
0.6188 € *
Standard delivery time from the manufacturer is: 20 Weeks

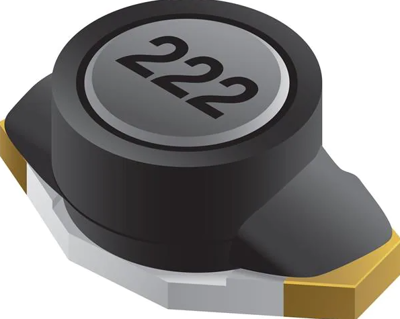

SMD Power inductor, SRE6603-103M, Bourns
Features
- Unit height of 2.9 mm
- High inductance
- Ferrite core
- RoHS compliant
Applications
- DC/DC converters
- Portable communications equipment
- Laptop computers
- Camcorders, HDTV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 10 mH | |
| Length | 6.6 mm | |
| Saturation current | 17 mA | |
| Design | SMD | |
| DC resistance | 32.8 Ω | |
| Tolerance | ±20 % | |
| Width | 4.45 mm | |
| Measuring frequency | 100 kHz | |
| Quality Q | Q 50 | |
| Height | 2.92 mm | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
