SDR1105-220ML | Bourns Electronics GmbH

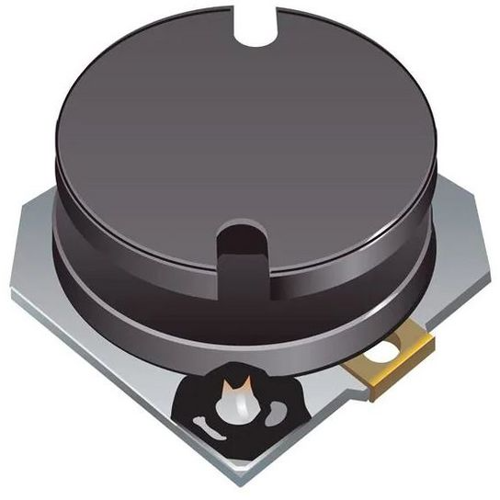

Power choke, SMD, 22 µH, SDR1105-220ML
Order No.: 05D5471
EAN: 4099879996688
MPN:
SDR1105-220ML
Unit Price (€ / pc.)
0.6307 € *
Standard delivery time from the manufacturer is: 22 Weeks
SMD Power inductor, SDR1105-220ML, Bourns
Features
- Low height of only 4.8 mm
- Ferrite core
- High I rms
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 22 µH | |
| Length | 11.1 mm | |
| Saturation current | 6.5 A | |
| Design | SMD | |
| DC resistance | 80 mΩ | |
| Tolerance | ±20 % | |
| Width | 10 mm | |
| Measuring frequency | 1 kHz | |
| Height | 4.8 mm | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
