SDR0604-101KL | Bourns Electronics GmbH

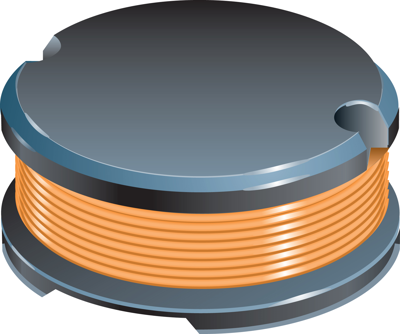

Power choke, SMD, 100 µH, 520 mA, SDR0604-101KL
Unit Price (€ / pc.)
0.2594 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power inductor, SDR0604-101KL, BOURNS
Features
- Small diameter of only 5.8 mm maximum
- Profile of 4.8 mm
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
Technical specifications
| Version | power choke | |
| Inductance | 100 µH | |
| DC current | 520 mA | |
| Tolerance | ±10 % | |
| DC resistance | 700 mΩ | |
| Saturation current | 680 mA | |
| Measuring frequency | 796 kHz | |
| Quality Q | Q 20 | |
| Design | SMD | |
| Length | 5.8 mm | |
| Width | 5.8 mm | |
| Height | 4.8 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
| Original Packaging | Reel with 400 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
