SDR0503-102KL | Bourns Electronics GmbH

Power choke, SMD, 1000 µH, 110 mA, SDR0503-102KL

Order No.: 05D4839
EAN: 4099879995759
MPN:
SDR0503-102KL
Series: SDR0503
SDR0503-102KL Bourns Electronics GmbH Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.2844 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
426.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
0.2844 €

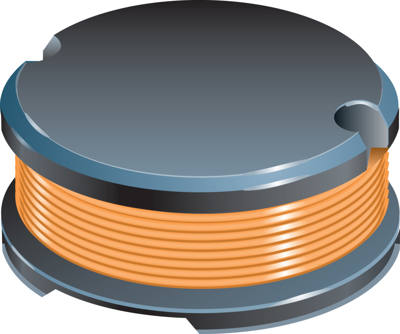

Power inductor, SDR0503-102KL, BOURNS

Features

  • Low profile of only 3.3 mm
  • Ferrite core
  • RoHS compliant

Applications

  • Input/output of DC/DC converters
  • Portable communications equipment
  • Camcorders
  • LCD TVs
Technical specifications
Quality Q Q 40
DC current 110 mA
Width 4.8 mm
Height 3 mm
Length 5 mm
DC resistance 11.5 Ω
Measuring frequency 0.252 MHz
Version power choke
Design SMD
Tolerance ±10 %
Inductance 1000 µH
Logistics
Country of origin CN
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
