SDR0403-220ML | Bourns Electronics GmbH

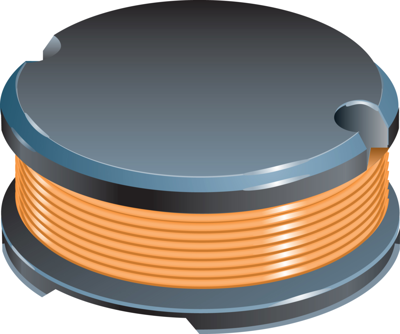

Power choke, SMD, 22 µH, 760 mA, SDR0403-220ML

Order No.: 05D4813
EAN: 4099879995735
MPN:
SDR0403-220ML
Series: SDR0403
SDR0403-220ML Bourns Electronics GmbH Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.2630 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
525.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.2630 €

Power inductor, SDR0403-220ML, BOURNS

Features

  • Low inductance
  • Low profile of only 3.2 mm
  • Ferrite core
  • RoHS compliant

Applications

  • Input/output of DC/DC converters
  • Portable communications equipment
  • Camcorders
  • LCD TVs
Technical specifications
Quality Q Q 25
DC current 760 mA
Width 4 mm
Height 3.2 mm
Length 4.5 mm
DC resistance 380 mΩ
Measuring frequency 2.52 MHz
Version power choke
Design SMD
Tolerance ±20 %
Inductance 22 µH
Logistics
Country of origin CN
Customs tariff number 85045000
MSL MSL 1
Original Packaging Reel with 2,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
