PM0603-68NJ-RC | Bourns Electronics GmbH

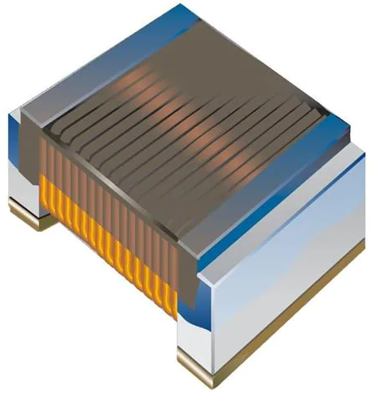

RF choke, SMD 0603, 68 µH, 600 mA, PM0603-68NJ-RC
Order No.: 05D3111
EAN: 4099879995650
MPN:
PM0603-68NJ-RC
Unit Price (€ / pc.)
0.2023 € *
Standard delivery time from the manufacturer is: 20 Weeks
RF inductor, PM0603-68NJ-RC, BOURNS
Features
- 0603 size
- High Q up to 35 typ.
- High operating temperature of 125 °C
Applications
- Mobile phones
- CTV, VCR, HIC, FDD
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Quality Q | Q 35 | |
| Height | 1 mm | |
| Inductance | 68 µH | |
| Version | RF choke | |
| Measuring frequency | 1.4 GHz | |
| DC resistance | 340 mΩ | |
| Tolerance | ±5 % | |
| Width | 1.05 mm | |
| Design | SMD 0603 | |
| Length | 1.65 mm | |
| DC current | 600 mA |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
