CVH252009-4R7M | Bourns Electronics GmbH

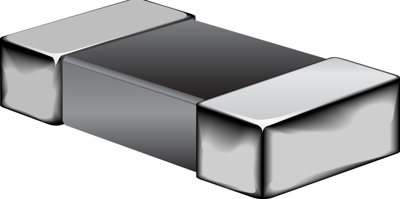

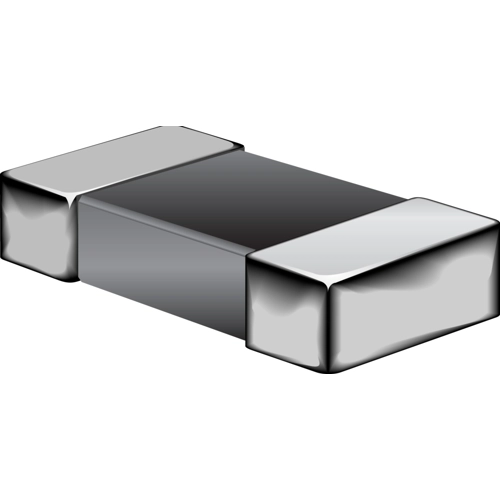

Power choke, SMD 1008, 4.7 µH, 1.1 A, CVH252009-4R7M
Order No.: 05D2749
EAN: 4099879995629
MPN:
CVH252009-4R7M
Unit Price (€ / pc.)
0.2142 € *
Standard delivery time from the manufacturer is: 20 Weeks
Power inductor, CVH252009-4R7M, BOURNS
Features
- Monolithic construction offering high reliability
- Magnetically shielded construction providing low radiation
- Low DC resistance
- Low profile, 1008 size (2.5 x 2 x 0.9 mm)
- RoHS compliant
Applications
- Smart phones
- Tablets
- Mobile electronic devices
- DVCs/DSCs
- HDDs/SSDs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 4.7 µH | |
| Length | 2.5 mm | |
| Design | SMD 1008 | |
| DC resistance | 110 mΩ | |
| Tolerance | ±20 % | |
| DC current | 1.1 A | |
| Width | 2 mm | |
| Measuring frequency | 25 MHz | |
| Height | 0.9 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85045000 |
| MSL | MSL 2 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
