CMH322522-180KL | Bourns Electronics GmbH
Choke, SMD, 18 µH, CMH322522-180KL
Order No.: 05D5676
EAN: 4099879998590
MPN:
CMH322522-180KL
Unit Price (€ / pc.)
0.2796 € *
Standard delivery time from the manufacturer is: 16 Weeks

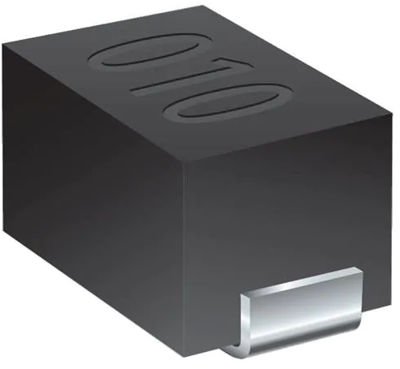

Wirewound chip inductor, CMH322522-180KL, Bourns
CMH322522-180KL is ideal for the prevention of electromagnetic interference to signals on the secondary side of electronic equipment.
Features
- High Q characteristics
- 1210 size
- High current
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 18 µH | |
| Length | 3.2 mm | |
| Design | SMD | |
| DC resistance | 3.3 Ω | |
| Tolerance | ±10 % | |
| Width | 2.5 mm | |
| Measuring frequency | 2.52 MHz | |
| Quality Q | Q 30 | |
| Height | 2.2 mm | |
| Version | choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
