CM453232-331KL | Bourns Electronics GmbH
Choke, SMD, 330 µH, 85 mA, CM453232-331KL
Order No.: 05D5876
EAN: 4099889000450
MPN:
CM453232-331KL
Unit Price (€ / pc.)
0.2202 € *
Standard delivery time from the manufacturer is: 18 Weeks

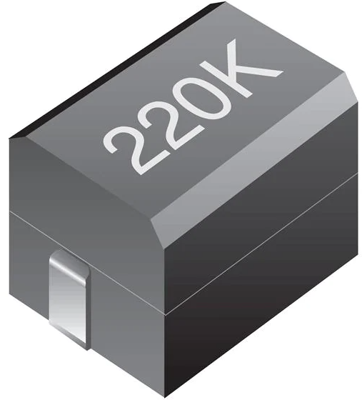

Chip inductor, CM453232-331KL, Bourns
Features
- High resistance to heat and humidity
- Resistance to mechanical shock and pressure
- Accurate dimensions for automatic surface mounting
- RoHS compliant
Applications
- Mobile phones
- Cellular phones
- CTV, VCR, HIC, FDD
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 330 µH | |
| Length | 4.5 mm | |
| Design | SMD | |
| DC resistance | 14 Ω | |
| Tolerance | ±10 % | |
| DC current | 85 mA | |
| Width | 3.2 mm | |
| Measuring frequency | 0.796 MHz | |
| Quality Q | Q 40 | |
| Height | 3.2 mm | |
| Version | choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
