CM322522-470KL | Bourns Electronics GmbH

Choke, SMD, 47 µH, 60 mA, CM322522-470KL

Order No.: 05D5432
EAN: 4099879996312
MPN:
CM322522-470KL
Series: CM322522
CM322522-470KL Bourns Electronics GmbH Fixed Inductors

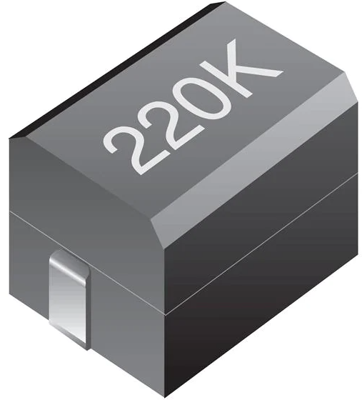

Image may differ
Unit Price (€ / pc.)
0.1309 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
1,309.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
0.1309 €

Chip inductor, CM322522-470KL, Bourns

Features

  • High resistance to heat and humidity
  • Resistance to mechanical shock and pressure
  • Accurate dimensions for automatic surface mounting
  • RoHS compliant

Applications

  • Mobile phones
  • Cellular phones
  • CTV, VCR, HIC, FDD
Technical specifications
Quality Q Q 30
Design SMD
Measuring frequency 2.52 MHz
Tolerance ±10 %
Width 2.5 mm
Height 2.2 mm
Version choke
DC resistance 7 Ω
Inductance 47 µH
Length 2.9 mm
DC current 60 mA
Logistics
MSL MSL 1
Country of origin CN
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
