CM322522-220KL | Bourns Electronics GmbH

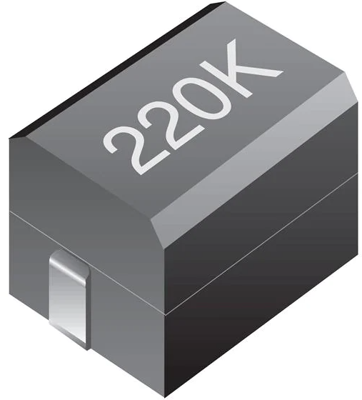

Choke, SMD, 22 µH, 110 mA, CM322522-220KL

Order No.: 05D5431
EAN: 4099879996305
MPN:
CM322522-220KL
Series: CM322522
CM322522-220KL Bourns Electronics GmbH Fixed Inductors
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 1,980 pcs.
Leadtime: 26 Weeks **
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
20 pcs.
0.3332 €
100 pcs.
0.2606 €
500 pcs.
0.2142 €
2000 pcs.
0.1892 €
4000 pcs.
0.1714 €
*incl. VAT plus shipping costs
**Subject to prior sale

Chip inductor, CM322522-220KL, Bourns

Features

  • High resistance to heat and humidity
  • Resistance to mechanical shock and pressure
  • Accurate dimensions for automatic surface mounting
  • RoHS compliant

Applications

  • Mobile phones
  • Cellular phones
  • CTV, VCR, HIC, FDD
Technical specifications
Quality Q Q 30
Design SMD
Measuring frequency 2.52 MHz
Tolerance ±10 %
Width 2.5 mm
Height 2.2 mm
Version choke
DC resistance 3.7 Ω
Inductance 22 µH
Length 2.9 mm
DC current 110 mA
Logistics
MSL MSL 1
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
