5900-104-RC | Bourns Electronics GmbH

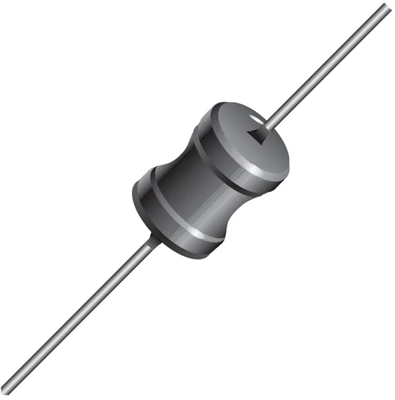

High current choke, axial, 100 mH, 5900-104-RC
Order No.: 05D5427
EAN: 4099879996268
MPN:
5900-104-RC
Unit Price (€ / pc.)
1.6184 € *
Standard delivery time from the manufacturer is: 18 Weeks
High current choke, 5900-104-RC, Bourns
Features
- High current capacity
- Dielectric strength: 2500 Vrms
- Ferrite bobbin core
- VW-1 rated shrink tubing to cover winding
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 100 mH | |
| Length | 22.86 mm | |
| Saturation current | 83 mA | |
| Design | axial | |
| DC resistance | 82 Ω | |
| Tolerance | ±10 % | |
| Measuring frequency | 1 kHz | |
| Version | high current choke |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
