5800-100-RC | Bourns Electronics GmbH

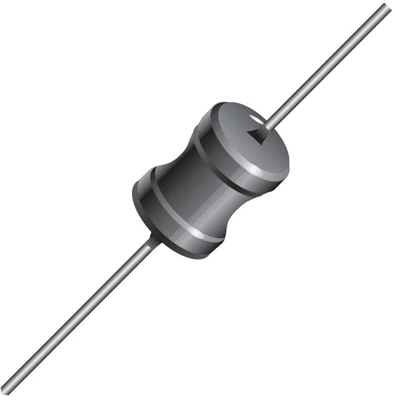

High current choke, axial, 10 µH, 5800-100-RC
Order No.: 05D5526
EAN: 4099879997173
MPN:
5800-100-RC
Unit Price (€ / pc.)
0.9520 € *
Standard delivery time from the manufacturer is: 18 Weeks
High current choke, 5800-100-RC, Bourns
Features
- High current capacity
- Low DCR
- Ferrite bobbin core
- VW-1 rated shrink tubing to cover winding
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | high current choke | |
| Length | 17.78 mm | |
| Measuring frequency | 1 kHz | |
| Design | axial | |
| Saturation current | 3.6 A | |
| Tolerance | ±10 % | |
| Inductance | 10 µH | |
| DC resistance | 32 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
