MH3261-601Y | Bourns Electronics GmbH

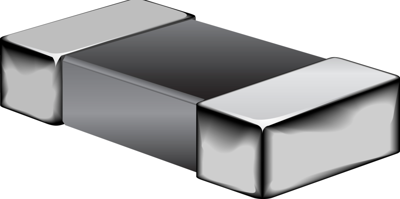

Ferrite Bead, SMD 1206, 2 A, 100 mΩ, 100 MHz, 600 Ω, ±25 %, MH3261-601Y
Unit Price (€ / pc.)
0.0762 € *
Available: 2,350 pcs.
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
50 pcs.
0.0762 €
250 pcs.
0.0559 €
1500 pcs.
0.0440 €
5000 pcs.
0.0369 €
10000 pcs.
0.0321 €
*incl. VAT plus shipping costs
Subject to prior sale
Ferrite Bead, MH3261-601Y, Bourns
High Current Chip Ferrite Bead
Features
- High resistance to heat and humidity
- Resistance to mechanical shock and pressure
- Accurate dimensions for automatic surface mounting
- Halogen free
Applications
- Power supply lines
- IC power lines
- Signal lines
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | SMD 1206 | |
| DC current | 2 A | |
| DC resistance | 100 mΩ | |
| Measuring frequency | 100 MHz | |
| Impedance | 600 Ω | |
| Tolerance | ±25 % | |
| Length | 3.2 mm | |
| Width | 1.6 mm | |
| Height | 1.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
