SM91502ALE | Bourns Electronics GmbH
BMS transformer, 1:1, 150 µH, 0.45 Ω, SM91502ALE
Order No.: 05D5369
EAN: 4099889048490
MPN:
SM91502ALE
Unit Price (€ / pc.)
2.4514 € *
Standard delivery time from the manufacturer is: 16 Weeks

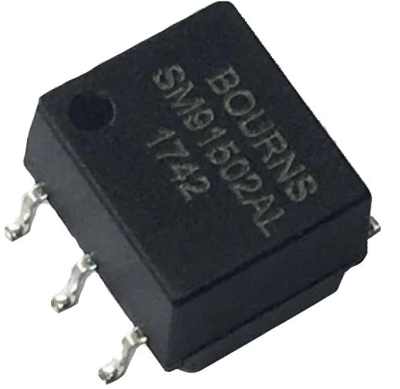

Transformer, SM91502ALE, Bourns
Features
- One channel with choke
- 1000 Vdc working voltage
- AEC-Q200 compliant
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | BMS transformer | |
| Winding ratio | 1:1 | |
| Inductance | 150 µH | |
| Design | SMD | |
| min. frequency | 1 MHz | |
| max. frequency | 200 MHz | |
| DC resistance | 0.45 Ω | |
| Length | 7.62 mm | |
| Width | 8.89 mm | |
| Height | 5.72 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85177900 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
