SM13126PEL | Bourns Electronics GmbH

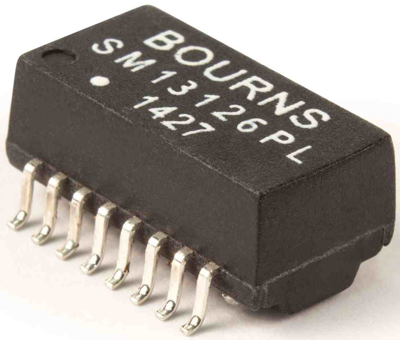

VoIP transmission module, 1:1, 350 µH, 0.8 Ω, SM13126PEL
Order No.: 05D5373
EAN: 4099889048520
MPN:
SM13126PEL
Unit Price (€ / pc.)
1.2852 € *
Standard delivery time from the manufacturer is: 24 Weeks
Transformer, SM13126PEL, Bourns
Features
- Compliant with IEEE 802.3 standards
- Designed for 10/100 Base-Tx VoIP and PoE
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | VoIP transmission module | |
| Winding ratio | 1:1 | |
| Inductance | 350 µH | |
| Design | SMD | |
| min. frequency | 1 MHz | |
| max. frequency | 100 MHz | |
| DC resistance | 0.8 Ω | |
| Length | 12.8 mm | |
| Width | 6.9 mm | |
| Height | 5.65 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Customs tariff number | 85177900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
