H-516-6A | Bourns Electronics GmbH
Analogue adjustment knob, 6.35 mm, 15, silver/black, H-516-6A
Order No.: 20H764
EAN: 4099889343649
MPN:
H-516-6A
Unit Price (€ / pc.)
10.3887 € *
Available: 120 pcs.
Total Price:
10.39 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3887 €
10 pcs.
9.1392 €
50 pcs.
8.5204 €
150 pcs.
8.1396 €
500 pcs.
7.7231 €
*incl. VAT plus shipping costs
Subject to prior sale

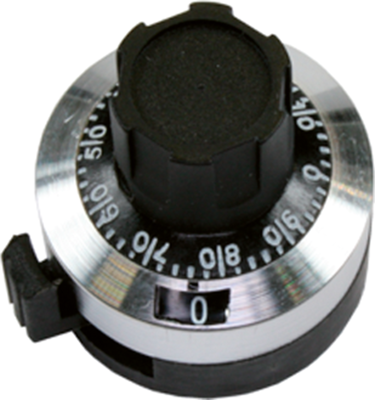

Rotary knob counter, H-516-6A, Bourns Electronics GmbH
Rotary knob counter for use with precision potentiometers or other rotating devices, up to 15 turns. Designed for use with plastic shafts.
Features
- No backlash
- Compact - requires minimal disk space (22.2 mm diameter required)
- RoHS compliant

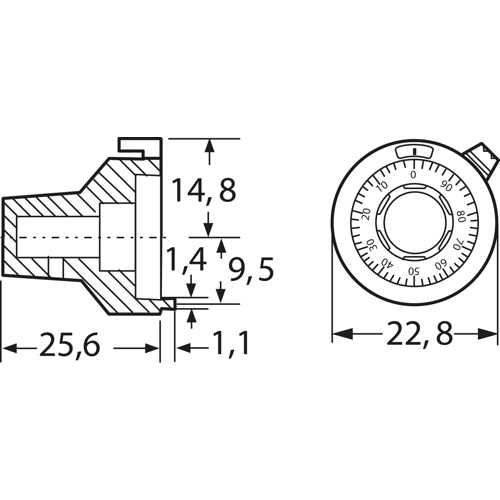

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | analog | |
| For shaft diameter | 6.35 mm | |
| diameter | 22.8 mm | |
| Height | 24.8 mm | |
| max. number of revolutions | 15 | |
| Locking | locking brake | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | CN |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
