44050004 + 44093004 | Bopla

ABS/PC enclosure, (L x W x H) 125 x 67 x 40 mm, light gray (RAL 7035), IP40, 44050004 + 44093004

Order No.: 50H2102
EAN: 4099889514858
MPN:
44050004 + 44093004
44050004 + 44093004 Bopla General Purpose Enclosures
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

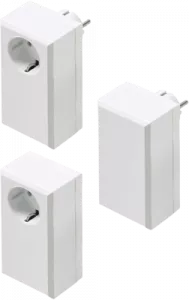

ABS/PC enclosure, (L x W x H) 125 x 67 x 50 mm, white, IP40, 44000409
ABS/PC enclosure, (L x W x H) 125 x 67 x 50 mm, white, IP40, 44000409
Order No.: 50H2104
Manufacturer: Bopla
per pc. 30.3450 € *

Plug housings/small housings, made of plastic, type Bopla Elesett 44000.

With power connector DIN 49441/CEE 7 III in the base shell. The housing consists of 2 shells. Lids and subparts with mounting cams and without connectors; Material: polycarbonate-ABS blend, flame retardant. Color: light-gray/agate-gray. Dimensions: 125 x 67 mm. Base section height: generally 15 mm.

Technical attributes (type, height of top section, overall height without plug): 500, housing, 25 mm, 40 mm.

Technical specifications
Filter Property Value
RAL number 7035
Length 125 mm
Height 40 mm
Colour light gray
Material ABS/PC
Width 67 mm
Degree of protection (IP) IP40
Logistics
Property Value
Customs tariff number 39269097
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Replacement
