02223100 | Bopla

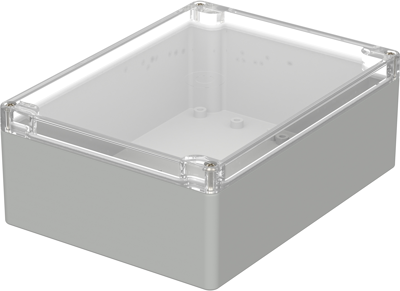

PC enclosure, (L x W x H) 200 x 150 x 75 mm, light gray/transparent (RAL 7035), IP65, 02223100

Order No.: 60H192
EAN: 4099889517361
MPN:
02223100
Series: EUROMAS PC
02223100 Bopla General Purpose Enclosures Image 1
02223100 Bopla General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
61.1065 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
61.11 € *
Price list
Quantity
Price per unit*
1 pcs.
61.1065 €
10 pcs.
55.0018 €
50 pcs.
49.4921 €
100 pcs.
44.5536 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plastic enclosures, type Multi-Box/Bopla/Rose.

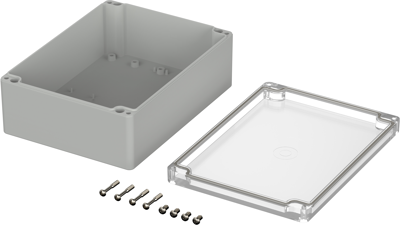

Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.

Design: polycarbonate/macrolon, with clear lid.

Technical attributes (type, outer dimension, lid height (LH)): 02223100, W 150, L 200, H 75 mm, LH 15

Technical specifications
Colour light gray/transparent
Degree of protection (IP) IP65
Width 150 mm
Height 75 mm
Length 200 mm
Material PC
RAL number 7035
Logistics
Country of origin RO
Customs tariff number 39269097
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
