02217200 | Bopla

PC enclosure, (L x W x H) 122 x 120 x 55 mm, light gray/transparent (RAL 7035), IP65, 02217200

Order No.: 60H186
EAN: 4099889517323
MPN:
02217200
Series: EUROMAS PC

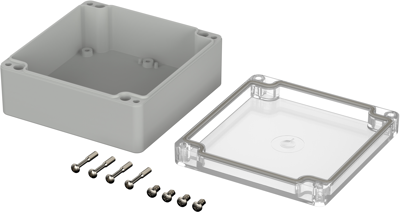

02217200 Bopla General Purpose Enclosures Image 1

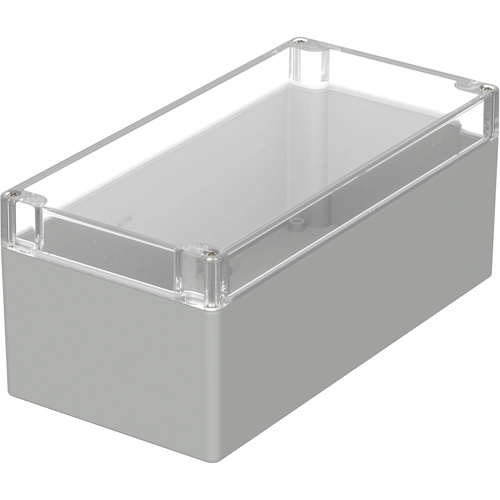

02217200 Bopla General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
37.7587 € *
Available: 2 pcs.
Total Price:
37.76 € *
Price list
Quantity
Price per unit*
1 pcs.
37.7587 €
5 pcs.
35.4977 €
15 pcs.
34.1292 €
50 pcs.
32.6179 €
150 pcs.
31.2613 €
*incl. VAT plus shipping costs
Subject to prior sale

Plastic enclosures, type Multi-Box/Bopla/Rose.

Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.

Design: polycarbonate/macrolon, with clear lid.

Technical attributes (type, outer dimension, lid height (LH)): 02217200, W 120, L 122, H 55 mm, LH 15

Technical specifications
Filter Property Value
RAL number 7035
Degree of protection (IP) IP65
Material PC
Width 120 mm
Height 55 mm
Colour light gray/transparent
Length 122 mm
Logistics
Property Value
Country of origin RO
Customs tariff number 39269097
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
