02210000 | Bopla

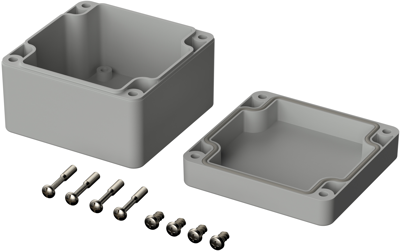

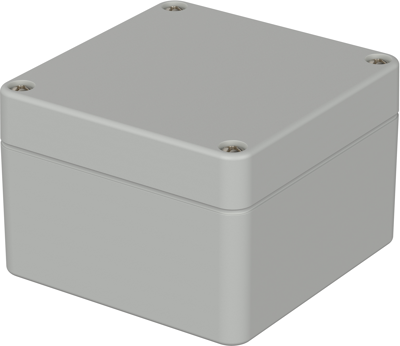

Polycarbonate enclosure, (L x W x H) 82 x 80 x 55 mm, light gray (RAL 7035), IP65, 02210000
Active
Product by Bopla at Bürklin Elektronik
Plastic enclosures, type Multi-Box/Bopla/Rose.
Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: –40 to +80 °C/ –40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.
Made of polycarbonate/macrolon.
Technical attributes (type, outer dimension, lid height (LH)): 02210000, W 80, L 82, H 55 mm, LH 14.5
| Width | 80 mm | |
| Colour | light gray | |
| Height | 55 mm | |
| Length | 82 mm | |
| Material | Polycarbonate | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
| Country of origin | HU |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
