USB-AD16F | bmcm

USB measuring system, USB-AD16f

Order No.: 20K164
EAN: 4099891474058
MPN:
USB-AD16F
Series: MA

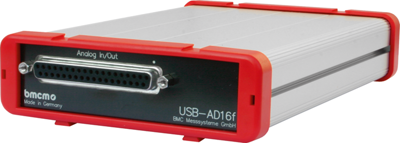

USB-AD16F bmcm USB Measuring Systems
Image may differ
Unit Price (€ / pc.)
547.6737 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
547.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
547.6737 €

USB measuring systems, type bmcm USB-AD16f.

External measuring system with 16 inputs and 2 outputs (analog), 4 digital I/Os, one counter (isolated); Measuring ranges: ±10, ±5.0, ±2.0, ±1.0 V. Sampling rate: 250 kHz. Resolution: 16 bits. Counter: 1.0 MHz, 16 bits, electrically isolated. Power supply: 5.0 V from USB port of the PC. Analog connection: 37-pole sub-D socket (front panel). Digital connection: 15-pole sub-D socket (rear panel). Potentials: 60 VDC to VDE, max. 1.0 kV ESD on open line. Operating temperatures: 0 to +70 °C. Dimensions aluminum case: 167 x 113 x 30 mm. Degree of protection: IP 30. Supplied with USB cable 1.0 m, NextView4 Live programming and analysis software. The software described below is required to save and analyze data.

Type: USB–AD16f, USB measuring system

Technical specifications
Filter Property Value
Version USB measuring system
Digital-I/O 4
Analog Input Channels 4, 16 bit
Analog Output Channels 2, 16 bit
Counter 16 bit
Logistics
Property Value
Country of origin DE
Customs tariff number 90303370
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
