Miniature USB measuring system, USB-AD
Unit Price (€ / pc.)
132.0900 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
132.09 € *
Price list
Quantity
Price per unit*
1 pcs.
132.0900 €
3 pcs.
128.1273 €
10 pcs.
123.7243 €
25 pcs.
120.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

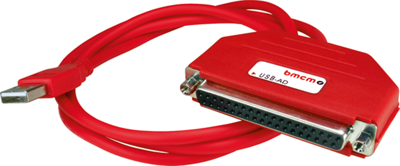

Miniature USB measuring systems, type bmcm USB-AD.
External measuring system with 16 analog inputs, one analog output and 4 digital I/Os, compatible with USB 2.0; Measuring range: ±5.0 V. Resolution: 12 bits. Tolerance: ±5.0 mV. Connection: 37-pin sub-D socket. Power supply: 4.5 to 5.5 V from USB port of the PC. Potentials: 60 VDC to VDE, max. 1.0 kV ESD on open line. Operating temperatures: –25 to +70 °C. Dimensions plastic housing: 71 x 45 x 16 mm. Degree of protection: IP 30. Length USB cable: approx. 1.1 m. Supplied with NextView4 Live programming and analysis software. The software described below is required to save and analyze data.
Type: USB–AD, miniature USB measuring system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Analog Output Channels | 1, 12 bit | |
| Version | miniature USB measuring system | |
| Digital-I/O | 4 | |
| Analog Input Channels | 4, 16 bit |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
