10120806 | BKL Electronic

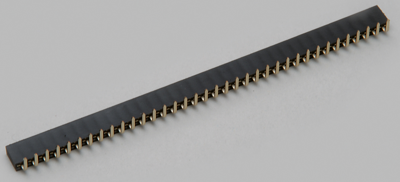

Socket header, 36 pole, pitch 2.54 mm, angled, black, 10120806
Order No.: 71F7416
EAN: 4011376708113
MPN:
10120806
Unit Price (€ / pc.)
2.2610 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0944 €
50 pcs.
1.9278 €
100 pcs.
1.8088 €
500 pcs.
1.7017 €
*incl. VAT plus shipping costs
Subject to prior sale
socket connector, angled, 36-pin, gold plated contacts 0,7x0,4mm, separable, grid pitch 2,54mm, pin spacing 1,5mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Version | socket header | |
| Orientation | angled | |
| Pin number | 36 pole | |
| Breakable | No | |
| Additional parts | equipped | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated current | 3 A | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
