10120117 | BKL Electronic

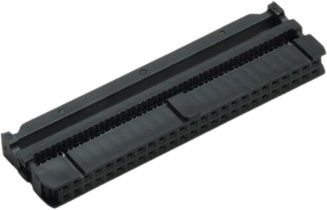

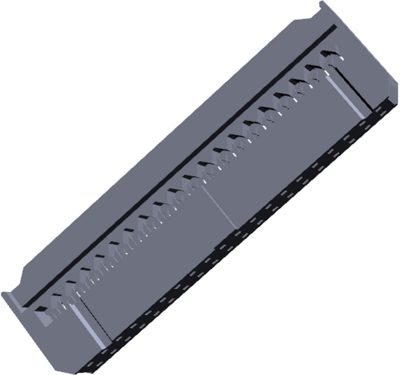

Socket header, 40 pole, pitch 2.54 mm, straight, black, 10120117
Order No.: 71F7429
EAN: 4011376709813
MPN:
10120117
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.8806 €
50 pcs.
0.8330 €
100 pcs.
0.7854 €
500 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
header connector, 2x20-pin, two rows, grid pitch 2,54mm, gold plated contacts, strain relief, polarity protection, mounted, for flat cable 1,27mm, height 15,6mm
Technical specifications
| Colour | black | |
| contact surface | gold-plated | |
| Rated current | 1 A | |
| Grid | 2.54 mm | |
| Pin number | 40 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
