BK2706B | BK PRECISION
Digital multimeter BK2706B, 200 mA(DC), 200 mA(AC), 1000 VDC, 750 VAC, 200 µF to 20 mF
Order No.: 35K0050
EAN: 817050270624
MPN:
BK2706B
Unit Price (€ / pc.)
117.691 € *
Standard delivery time from the manufacturer is: 2 Weeks

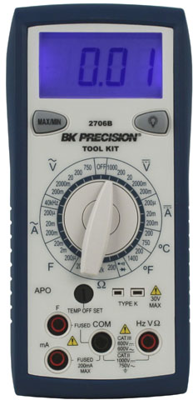

Digital multimeter, BK2706B, BK PRECISION
This excellent meter is for most jobs that require flexibility, accuracy and speed. Value-packed features make this meter a must for everyone’s “Tool Kit”.
The ergonomic design allows both left and right handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Features
- Diode test
- Magnetic hanging strap
- Continuity test
- Drop resistant case
Technical specifications
| max. voltage measuring range (DC) | 1000 V | |
| Display Digits | 2000 | |
| TRMS possible | No | |
| max. measured current value (DC) | 200 mA | |
| max. voltage measuring range (AC) | 750 V | |
| max. resistance range | 20 MΩ | |
| Version | digital multimeter | |
| Capacity range | 200 µF to 20 mF | |
| max. measured current value (AC) | 200 mA |
Download
Logistics
| Customs tariff number | 90303100 |
| Country of origin | TW |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
