BK2704C | BK PRECISION
Digital multimeter BK2704C, 10 A(DC), 10 A(AC), 1000 VDC, 750 VAC, 2 nF to 20 µF
Order No.: 35K0048
EAN: 817050270433
MPN:
BK2704C
Unit Price (€ / pc.)
101.031 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

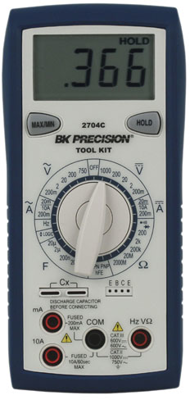

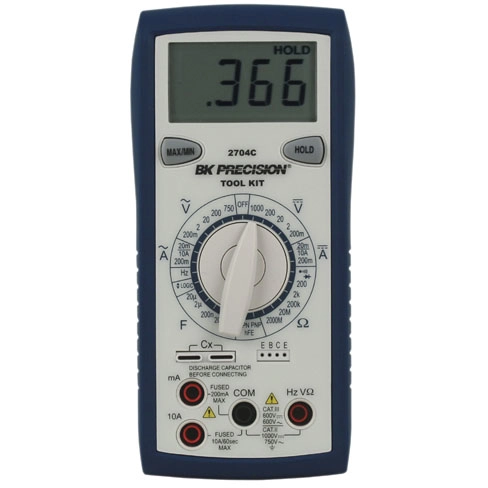

Digital multimeter, BK2704C, BK PRECISION
This excellent meter is for most jobs that require flexibility, accuracy and speed. Value-packed features make this meter a must for everyone’s “Tool Kit”.
The ergonomic design allows both left and right handed users to rotate the knob while holding the meter in one hand. While one hand keeps the probe on the circuit, the other hand changes the meter’s function. This speeds up troubleshooting because you don’t have to locate the probe point in the circuit again.
Features
- Diode test
- Magnetic hanging strap
- Continuity test
- Drop resistant case
Technical specifications
| max. voltage measuring range (DC) | 1000 V | |
| max. voltage measuring range (AC) | 750 V | |
| max. measured current value (DC) | 10 A | |
| max. resistance range | 2000 MΩ | |
| TRMS possible | No | |
| Version | digital multimeter | |
| Display Digits | 2000 | |
| max. measured current value (AC) | 10 A | |
| Capacity range | 2 nF to 20 µF |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 90303100 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
