Precision LCR meter, BK894, BK PRECISION

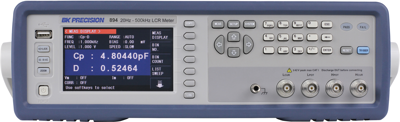

The BK894 is a high accuracy LCR meter capable of measuring inductance, capacitance, and resistance of components and materials at DC or from 20 Hz to 500 kHz or 1 MHz respectively. This meter provides flexible AC and DC test signal configuration. The vivid 4.3-inch TFT LCD offers a clear view of all measured and setting values along with BIN sorting comparator results and a handy Zoom feature that enlarges the measured values to full screen.

With a basic accuracy of 0.05%, auto level control (ALC), open / short / load correction and cable length compensation, this meter is perfect tool for RandD, manufacturing and quality control applications.

Features

• Fast measurement speed up to 13 ms/reading to increase manufacturing throughput
• Adjustable measurement speed for fast readout or better accuracy
• 201-point programmable list sweep function providing ability to sweep frequency, AC and DC bias voltage/current levels
• Auto-level control to maintain the measurement signal applied to the DUT at a constant level
• Test signal voltage and current monitoring
• BIN comparator function to sort components in up to 10 bin locations
• Handler interface for easy integration with a component handler

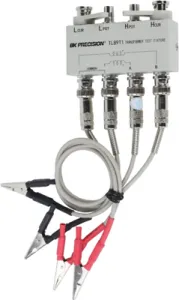

• 4-terminal fixture and Kelvin clip test leads included
• Versatile trigger functionality (internal, external, bus and manual)
