BK4005DDS | BK PRECISION
5 MHz DDS Function Generator
Order No.: 35K0064
EAN: 817050400502
MPN:
BK4005DDS
Unit Price (€ / pc.)
465.29 € *
Standard delivery time from the manufacturer is: 3 Weeks

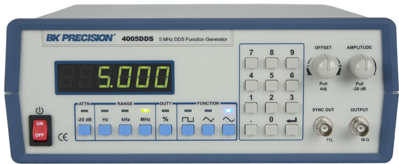

DDS Function generator, BK4005DDS, BK PRECISION
The BK4005DDS is a versatile 5 MHz DDS (direct digital synthesis) function generator with a 4-digit display. The instrument generates sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range. The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20 Vp-p into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level. These features make the BK4005DDS great for education and other applications that need basic waveform generation.
Features
- Frequency is selectable from 1 Hz to 5 MHz
- Sine, square, or triangle waveform output
- Direct digital synthesis (DDS) architecture
- Bright, easy-to-read LED display
- Number pad for quick input of frequency
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency range | 1 Hz-5 MHz | |
| Display | LED | |
| Waveforms | sinus, square, triangle | |
| Signal generator | DDS |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85432000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
