CP6220 | BK PRECISION
AC/DC oscilloscope current clamp CP6220, 100 A (DC), 100 A (AC), opening 11 mm, CAT II 600 V, CAT III 300 V
Order No.: 35K0245
EAN: 849947000144
MPN:
CP6220
Unit Price (€ / pc.)
714.00 € *
Standard delivery time from the manufacturer is: 3 Weeks

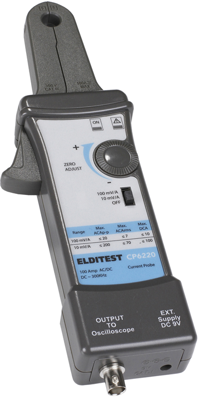

Oscilloscope current probe, CP6220, BK PRECISION
The new AC/DC oscilloscope clamp on current probes have been designed to extend the functionnality of any general purpose oscilloscopes. The compact body and slim jaw allows to use these probes for electronic circuits. All AC and DC measurements are possible with large dynamic range.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. measured current value (DC) | 100 A | |
| Surge voltage category | CAT II 600 V, CAT III 300 V | |
| Pliers opening | 11 mm | |
| max. measured current value (AC) | 100 A | |
| TRMS possible | No | |
| Product type | AC/DC oscilloscope current clamp |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90109080 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
