PVS10005 | BK PRECISION
Laboratory power supply, 0 bis 1000 V, outputs: 1 (5 A), 0 to 5 A, 5000 W, 170-265 VAC, PVS10005
Order No.: 35K0204
EAN: 817050911053
MPN:
PVS10005
Unit Price (€ / pc.)
6,783.00 € *
Standard delivery time from the manufacturer is: 8 Weeks

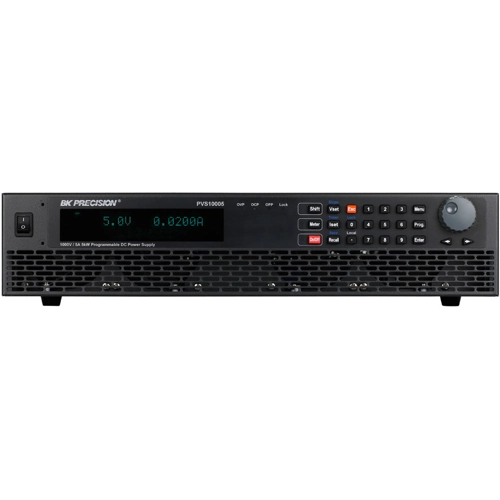

DC Power supply, PVS10005, BK PRECISION

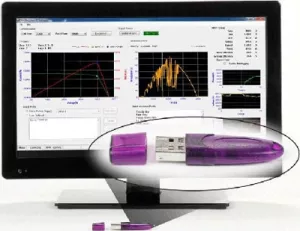

The PVS10005 power supply provides many useful features such as high programming resolution, multiple remote interfaces for test systems, and a built-in SAS (solar array simulator) function to generate PV (photovoltaic) I-V curves. The optional SAS software allows users to consistently reproduce various I-V curves to test a PV inverter’s MPPT efficiency.
This power supply is well suited for both bench use and ATE systems integration, RandD, design verification, production test, and high voltage testing.
Features
- Bright VFD display
- Fast transient response time of ≤0.5 ms
- Adjustable voltage and current slope (rise and fall times)
- Store up to 100 different instrument settings to internal memory
- Timer-controlled output (1 s to 1000 hrs)
- External analog programming and monitoring interface
- Front to rear airflow allows for efficient cooling in high rack density environments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 532 mm | |
| Height | 88 mm | |
| efficiency | 90 % | |
| Output current | 5 A | |
| Width | 420 mm | |
| Range of Output Currence | 0 to 5 A | |
| Number of outputs | 1 | |
| Power | 5000 W | |
| Output voltage DC | 0 to 1000 V | |
| Input voltage AC | 170-265 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
