BK9132C | BK PRECISION

Laboratory power supply, 2 x 0 bis 60 V + 0 bis 5 V, outputs: 3 (3 A/3 A/3 A), 0 to 3 A, 375 W, 110-220 VAC, BK9132C

Order No.: 35K0134
EAN: 817050913231
MPN:
BK9132C
BK PRECISION
BK9132C BK PRECISION Bench Power Supplies and Loads
Image may differ
Print
Key Specification:
Output voltage DC 2 x 0 to 60 V + 0 to 5 V
Output current 3 A
Output current 2 3 A
Output current 3 3 A
Range of Output Currence 0 to 3 A
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1,974.21 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1,974.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,974.21 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

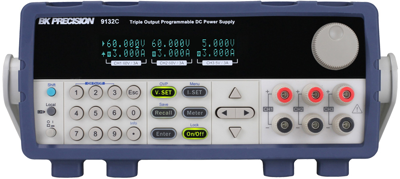

DC Power supply, BK9132C, BK PRECISION

The BK9132C DC power supply features isolated outputs that can be adjusted independently or combined in series or parallel to output higher voltage or current. Additionally, this supply can operate in tracking mode with user-configurable ratios between channels. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values. Up to 36 different instrument settings can be saved and recalled. The power-on state of the outputs can also be configured.

This power supply is suitable for a wide range of applications including production testing, telecommunications, RandD, electronic service, and labs.

Features

  • Three independent and electrically isolated outputs
  • Displays voltage and current settings for all three channels simultaneously
  • Low noise, linear regulation
  • Tracking mode allows users to set up channels to maintain a programmed ratio
  • Fully programmable channels with output On/Off control
  • Store and recall up to 36 instrument settings
  • Remote sense
  • Overvoltage (OVP) and overtemperature (OTP) protection including keylock function
Technical specifications
Depth 445 mm
Height 88.2 mm
Output voltage DC 2 x 0 to 60 V + 0 to 5 V
Power 375 W
Output current 3 3 A
Input voltage AC 110-220 VAC
Output current 2 3 A
Range of Output Currence 0 to 3 A
Width 214.5 mm
Output current 3 A
Number of outputs 3
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
