BK8540 | BK PRECISION
Electronic load, 150 W, 198-242 V/99-121 V, BK8540
Order No.: 35K0097
EAN: 817050854008
MPN:
BK8540
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
747.32 € *
Available: 2 pcs.

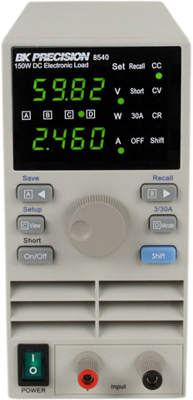

DC Electronic Load, BK8540, BK PRECISION
The BK8540 DC electronic load is a very compact, economically priced instrument that is at home on both the bench and the production floor. Though this is a DC load in a small package, it can reliably test a 5 volt power supply to 30 amps and do it continuously. The 8540 DC electronic load can operate in CC, CV or CR mode while voltage/current or resistance/power values are measured and displayed in real time, making it well suited to test a variety of DC power sources.
Features
- Easy operation
- Bright, easy-to-read display
- Very compact and light weight
- Constant current (CC), constant resistance (CR) and constant voltage (CV) operation
- Over-current and over-voltage protection
- Short mode to simulate shorts
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 150 W | |
| Input voltage AC | 198-242 V/99-121 V | |
| Width | 88 mm | |
| Height | 175 mm | |
| Depth | 282 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
