BK1762 | BK PRECISION

Laboratory power supply, 2 x 0 bis 60 VDC + 2 bis 6,5 V, outputs: 3 (2 A/2 A/5 A), 0 to 2 A, 350 W, 108-132 VAC, BK1762

Order No.: 35K0026
EAN: 817050176209
MPN:
BK1762
BK PRECISION
BK1762 BK PRECISION Bench Power Supplies and Loads
Image may differ
Print
Key Specification:
Output voltage DC 2 x 0 to 60 VDC + 2 to 6.5 V
Output current 2 A
Output current 2 2 A
Output current 3 5 A
Range of Output Currence 0 to 2 A
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
1,069.81 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
1,069.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,069.81 €
Description
Technical specifications
Download
Logistics
Compliance

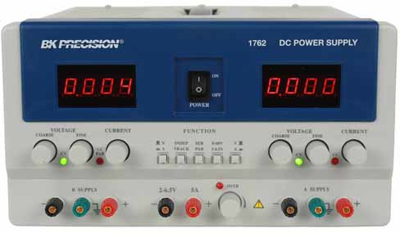

DC Power supply, BK1762, BK PRECISION

The triple output DC power supply offers three independent outputs with two 4-digit LED displays and 10 mV/1 mA resolution. The coarse and fine voltage control knobs make it an ideal supply for power-sensitive applications. This power supply also provides overload and reverse polarity protection.

Features

  • Constant voltage (CV) and constant current (CC) operation
  • Independent or series tracking/parallel mode operation to double voltage or current
  • Coarse and fine voltage controls
  • Adjustable current limiting
  • Designed to operate continuously at rated outpu
  • Overvoltage protection and reverse polarity protection
Technical specifications
Output voltage DC 2 x 0 to 60 VDC + 2 to 6.5 V
Output current 2 A
Output current 2 2 A
Output current 3 5 A
Range of Output Currence 0 to 2 A
Power 350 W
Input voltage AC 108-132 VAC
Number of outputs 3
Width 267 mm
Height 145 mm
Depth 381 mm
Articles of same specification 0
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
