BK1747 | BK PRECISION

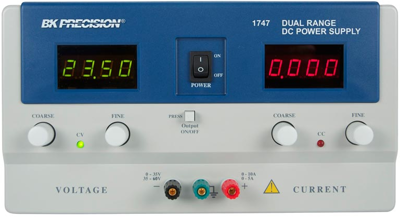

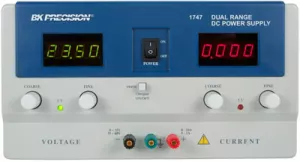

Laboratory power supply, 0 bis 60 VDC, outputs: 1 (5 A/10 A), 0 to 5 A, 560 W, 115-230 VAC, BK1747

Order No.: 35K0023

EAN: 817050174700

MPN:

BK1747

Image may differ

Key Specification:

Product type laboratory power supply

Output voltage DC 0 to 60 VDC

Output current 5 A

Output current 2 10 A

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Laboratory power supply, 0 bis 60 V, outputs: 1 (15 A), 0 to 15 A, 360 W, 110-220 VAC, BK9202B

Order No.: 35K0149

Manufacturer: BK PRECISION

per pc. 1,225.70 € *

Go to product

*incl. VAT plus shipping costs

Description

DC Power supply, BK1747, BK PRECISION

General purpose dual range DC power supply. This power supply can output higher voltage at a lower current range or more current at a lower voltage range. Two 4-digit LED displays continuously monitor the output voltage and current. The power supply can be operated locally from the front panel or remotely through the RS-232 interface. It is well-suited for a wide variety of electrical and electronics applications in service shops, engineering labs, production, school laboratories, and home use.

Features

Dual range to accommodate applications requiring either a higher voltage or a higher current
Low ripple and noise
Excellent regulation
Constant voltage (CV) and constant current (CC) mode operation
Two 4-digit LED displays provide good visibility in bright or low light
Automatic recall of last settings on power up
Isolated output
Overload protection
Reverse polarity protection

Technical specifications

Filter	Property	Value
	Product type	laboratory power supply
	Output voltage DC	0 to 60 VDC
	Output current	5 A
	Output current 2	10 A
	Range of Output Currence	0 to 5 A
	Power	560 W
	Input voltage AC	115-230 VAC
	Number of outputs	1
	Width	273 mm
	Height	153 mm
	Depth	356 mm
