BK1715A | BK PRECISION
Laboratory power supply, 0 bis 60 VDC, outputs: 1 (2 A), 0 to 2 A, 210 W, 120 VAC, BK1715A
Order No.: 35K0018
EAN: 817050171518
MPN:
BK1715A
Unit Price (€ / pc.)
672.35 € *
Standard delivery time from the manufacturer is: 3 Weeks

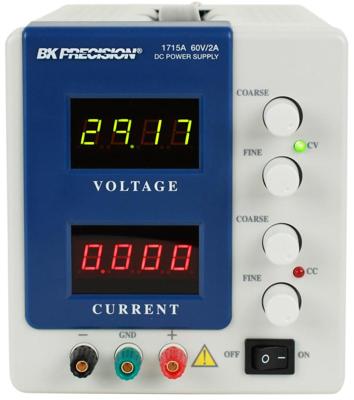

DC Power supply, BK1715A, BK PRECISION
High quality, general purpose DC power supply. It provides exceptional accuracy with dual analog displays and coarse and fine voltage and current controls.
Features
- Continuously monitor voltage and current output on two analog meters
- Connect two supplies in parallel to double the current output
- Connect two supplies in series to double the voltage output
- Reliable, Durable
- Operate continuously at full load without overheating
- Fully overload protected
- Excellent regulation
- Very low ripple
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 318 mm | |
| Range of Output Currence | 0 to 2 A | |
| Height | 158 mm | |
| Width | 140 mm | |
| Power | 210 W | |
| Output current | 2 A | |
| Output voltage DC | 0 to 60 VDC | |
| Number of outputs | 1 | |
| Input voltage AC | 120 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
