BK1672 | BK PRECISION

Name: Laboratory power supply, 0 bis 32 VDC, outputs: 3 (3 A/3 A), 0 to 3 A, 207 W, 115-230 VAC, BK1672
Brand: BK PRECISION
SKU: 35K0007
Availability: InStock

Laboratory power supply, 0 bis 32 VDC, outputs: 3 (3 A/3 A), 0 to 3 A, 207 W, 115-230 VAC, BK1672

Order No.: 35K0007

EAN: 817050167207

MPN:

BK1672

Image may differ

Key Specification:

Output voltage DC 0 to 32 VDC

Output current 3 A

Output current 2 3 A

Range of Output Currence 0 to 3 A

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

665.21 € *

Standard delivery time from the manufacturer is: 3 Weeks

Total Price:

665.21 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

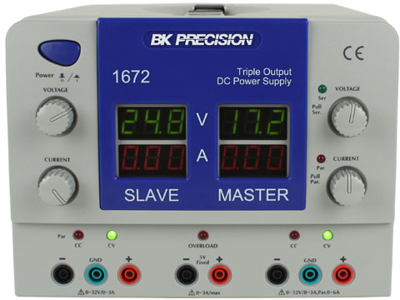

Triple Output DC Power Supply, BK1672, BK PRECISION

The BK1672 is quad display triple output DC power supplies that provide two variable outputs and one fixed output. The variable outputs can work independently, in series tracking, or parallel mode. Conveniently adjust voltage and current with independent front panel knobs and bright quad LED display.

This product is designed to operate in a constant voltage or a constant current mode with automatic crossover, allowing continuous transition from constant current to constant voltage modes in response to load condition changes. It is ideally suited for applications in electronic test, production, and service, where multiple independent DC power supplies are required.

Features

Three independent outputs
Individual control knobs for voltage and current settings of variable outputs
Separate 3-digit voltage and current displays for variable outputs
LED indication for CV/CC mode
Overload indication LED for fixed output

Technical specifications

Filter	Property	Value
	Depth	310 mm
	Power	207 W
	Range of Output Currence	0 to 3 A
	Output current	3 A
	Output current 2	3 A
	Width	230 mm
	Height	170 mm
	Output voltage DC	0 to 32 VDC
	Input voltage AC	115-230 VAC
	Number of outputs	3
