99 4445 458 05 | binder

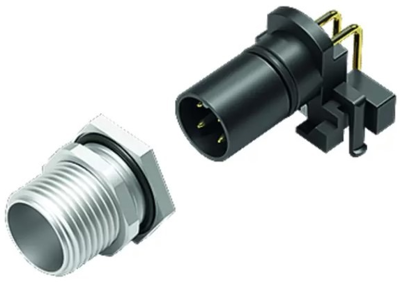

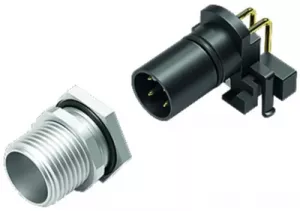

Panel plug, M12, 5 pole, THR, screw locking, straight, 99 4445 458 05
Unit Price (€ / pc.)
9.7580 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.76 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7580 €
10 pcs.
9.0678 €
50 pcs.
8.4371 €
100 pcs.
7.5922 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor-actuator connector, 99-4445-458-05, BINDER
M12-B Male panel mount connector, Contacts: 5, shieldable, THR, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | B | |
| Thread size | M12 | |
| Type of locking | screw locking | |
| Degree of protection (IP) | IP67 | |
| Product type | panel plug | |
| Assembly | panel mounting | |
| Contact connection | THR | |
| contact surface | gold-plated | |
| Pin number | 5 pole | |
| Orientation | straight |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
