99 4445 202 05 | binder
Panel plug, M12, 5 pole, THR, screw locking, angled, 99 4445 202 05
Unit Price (€ / pc.)
14.8393 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
14.84 € *
Price list
Quantity
Price per unit*
1 pcs.
14.8393 €
10 pcs.
13.0543 €
50 pcs.
12.1737 €
150 pcs.
11.6144 €
500 pcs.
11.0432 €
*incl. VAT plus shipping costs
Subject to prior sale

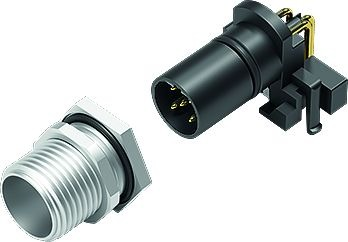

Male angled panel mount connector, 99-4445-202-05, Franz Binder
M12-B Male angled connector, poles 5, unshielded, THR, IP67, UL, two-part design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | THR | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Orientation | angled | |
| Product type | panel plug | |
| Coding | B | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
