99 4442 601 05 | binder
Panel socket, M12, 5 pole, solder pins, screw locking, straight, 99 4442 601 05
Unit Price (€ / pc.)
14.2562 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.26 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2562 €
10 pcs.
13.2685 €
50 pcs.
12.3403 €
100 pcs.
11.4835 €
*incl. VAT plus shipping costs
Subject to prior sale

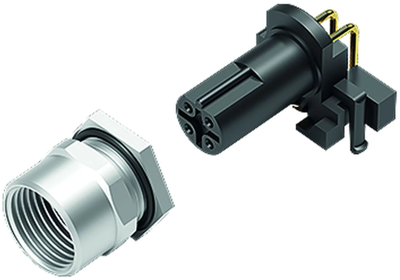

Female panel mount connector, 99 4442 601 05, binder
M12-B Female panel mount connector, Contacts: 5, shieldable, THR, IP68, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | solder pins | |
| Product type | panel socket | |
| Coding | B | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP68 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
