99 4442 402 05 | binder
Panel socket, M12, 5 pole, SMD, screw locking, straight, 99 4442 402 05
Unit Price (€ / pc.)
13.4827 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.48 € *
Price list
Quantity
Price per unit*
1 pcs.
13.4827 €
10 pcs.
12.5307 €
50 pcs.
11.6501 €
100 pcs.
10.4839 €
*incl. VAT plus shipping costs
Subject to prior sale

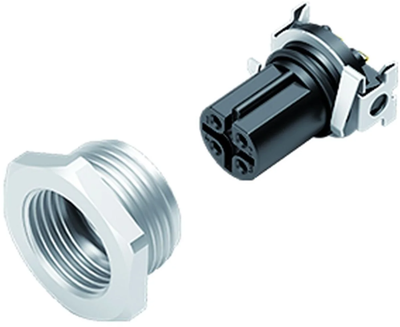

Female panel mount connector, 99 4442 402 05, binder
M12-B Female panel mount connector, Contacts: 5, shieldable, SMT, IP67, for SMT.
Technical specifications
| Pin number | 5 pole | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Contact connection | SMD | |
| Product type | panel socket | |
| Coding | B | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
