99 3787 810 08 | binder

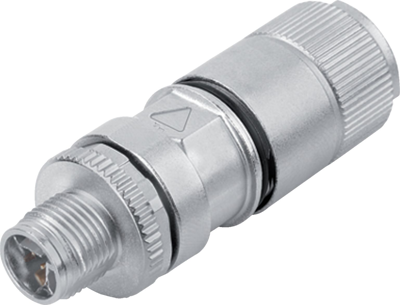

Plug, M12, 8 pole, IDC connection, Screw locking, straight, 99 3787 810 08
Images may differ
Unit Price (€ / pc.)
61.5706 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
61.57 € *
Quantity
Price per unit*
1 pcs.
61.5706 €
5 pcs.
57.8816 €
15 pcs.
55.6563 €
50 pcs.
53.1930 €
150 pcs.
50.9796 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Male cable connector, 99-3787-810-08, Franz Binder
M12-X Male connector, poles 8, 5.5-9.0 mm, shieldable, cutting clamp, IP67
Technical specifications
| Version | plug | |
| Thread size | M12 | |
| Coding | X | |
| Contact connection | IDC connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
