99 3732 401 04 | binder
Panel socket, M12, 4 pole, SMD, screw locking, straight, 99 3732 401 04
Unit Price (€ / pc.)
   12.0428 €  *
   Standard delivery time from the manufacturer is: On Request
 Total Price:
  12.04 € *
  Price list
 Quantity
 Price per unit*
 1 pcs.
 12.0428 €
 10 pcs.
 11.2098 €
 50 pcs.
 10.4125 €
 100 pcs.
 9.3653 €
  *incl. VAT plus shipping costs
  Subject to prior sale

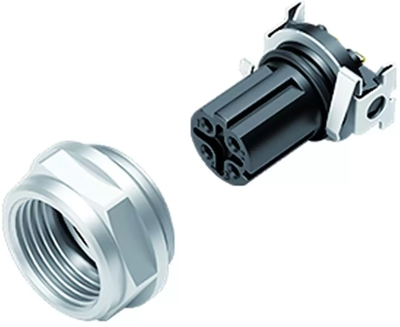

 Female panel mount connector, 99 3732 401 04, binder
M12-D Female panel mount connector, Contacts: 4, shieldable, SMT, IP67.
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Contact connection | SMD | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Coding | D | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
