99 3732 202 04 | binder
Panel socket, M12, 4 pole, THR, screw locking, angled, 99 3732 202 04
Unit Price (€ / pc.)
13.0662 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
13.07 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0662 €
10 pcs.
12.1380 €
50 pcs.
11.2931 €
100 pcs.
10.1626 €
*incl. VAT plus shipping costs
Subject to prior sale

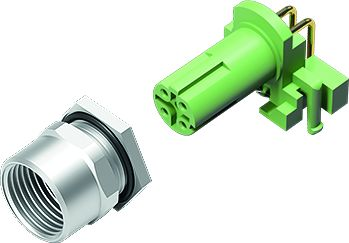

Female panel mount connector, 99-3732-202-04, Franz Binder
M12-D Female connector, poles 4, unshielded, THR, IP67, UL, two-part design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | THR | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Coding | D | |
| Thread size | M12 | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Product type | panel socket | |
| Pin number | 4 pole | |
| Type of locking | screw locking |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
