99 3731 203 04 | binder
Panel plug, M12, 4 pole, THR, screw locking, angled, 99 3731 203 04
Unit Price (€ / pc.)
19.2780 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.28 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2780 €
10 pcs.
16.9575 €
50 pcs.
15.8151 €
150 pcs.
15.1130 €
500 pcs.
14.3395 €
*incl. VAT plus shipping costs
Subject to prior sale

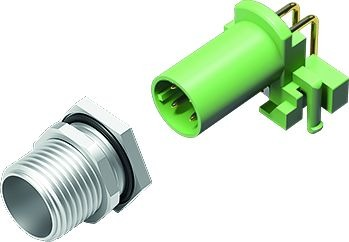

Male panel mount connector, 99-3731-203-04, Franz Binder
M12-D Male connector, poles 4, shieldable, THR, IP67, UL
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Contact connection | THR | |
| Product type | panel plug | |
| Coding | D | |
| Assembly | panel mounting | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
