99 3730 820 04 | binder

Angle coupling, M12, 4 pole, screw connection, screw locking, angled, 99 3730 820 04

Order No.: 70P2089
EAN: 4099891677442
MPN:
99 3730 820 04
Series: 825

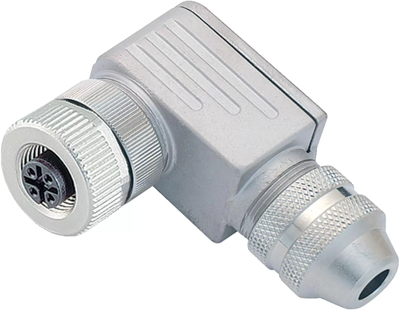

99 3730 820 04 binder Sensor-Actuator Connectors Image 1
99 3730 820 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.1915 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.19 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1915 €
10 pcs.
25.5612 €
25 pcs.
24.0380 €
50 pcs.
22.5743 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 99 3730 820 04, binder

M12-D Female angled connector, Contacts: 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL.

Technical specifications
Pin number 4 pole
Type of locking screw locking
Additional parts equipped
Contact connection screw connection
Product type angle coupling
Coding D
Assembly cable assembly
Orientation angled
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin HU
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
