99 3729 810 04 | binder

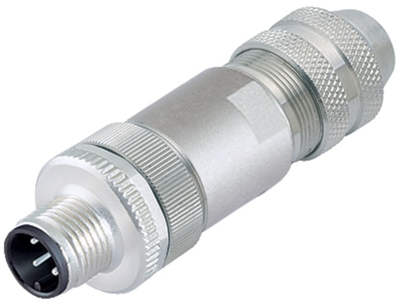

Plug, M12, 4 pole, screw connection, screw locking, straight, 99 3729 810 04
Unit Price (€ / pc.)
19.5517 € *
Available: 21 pcs.
Next delivery: 44 pcs. on 2025-07-10
Total Price:
19.55 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5517 €
10 pcs.
18.3736 €
50 pcs.
17.2669 €
100 pcs.
16.2435 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connector, 99-3729-810-04, Binder
Male cable connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Orientation | straight | |
| Coding | D | |
| Product type | plug | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
